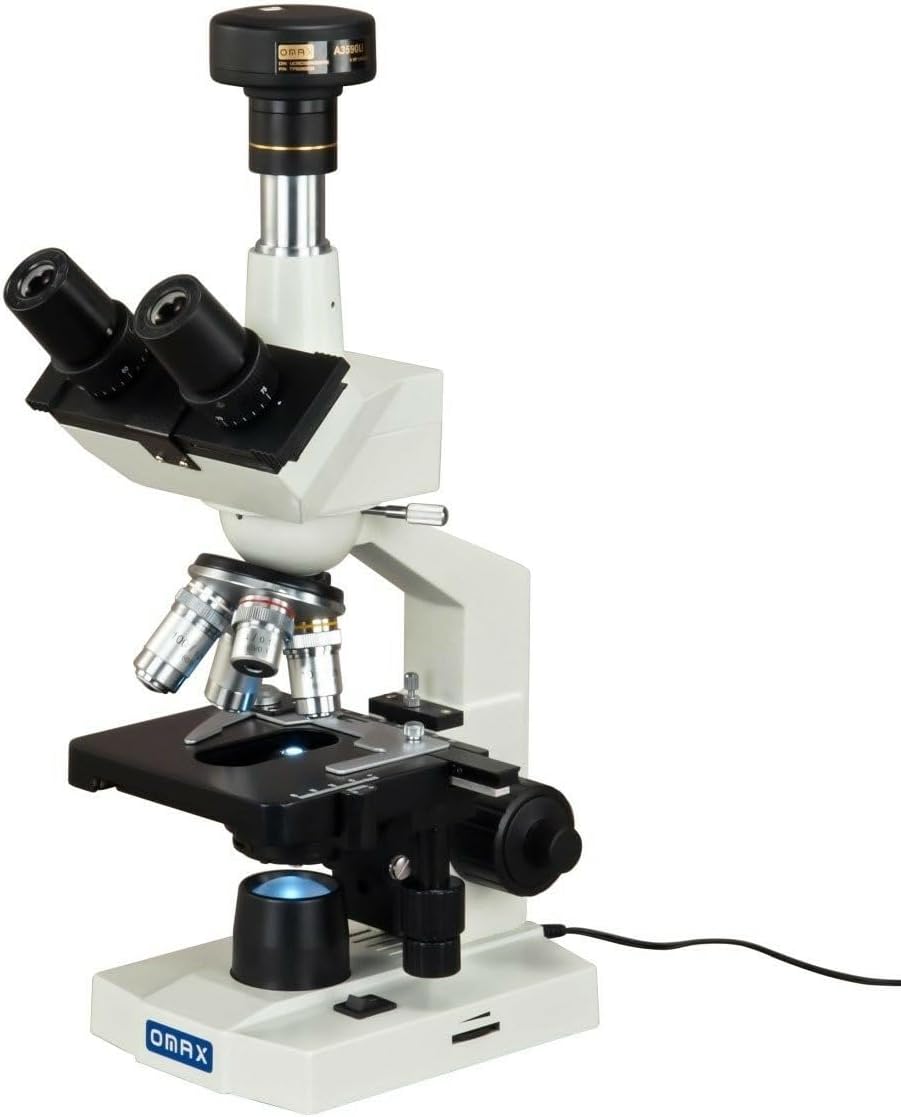

OMAX - M83EZ-C50U 40X-2500X Trinocular Digital Compound Microscope with 5 MP Digital Camera and Double Layer Mechanical Stage
Product details
| Management number | 212170073 | Release Date | 2026/04/06 | List Price | $199.60 | Model Number | 212170073 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: wide field WF10X and WF25X; Objectives: achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling trinocular. Sliding adjustable interpupillary distance: 2-3/16inch 2-15/16inch(5575mm); Ocular diopter adjustable on both eye tubes; Nosepiece: revolving quadruple; Stage: mechanical double layer size: 4-1/2inchx 4-15/16inch (115mm x 125mm); Stage x-y stroke (travel range): 2-13/16inch x 1-3/16inch (70mm x 30mm). Condenser and diaphragm: NA1.25 Abbe condenser with iris diaphragm; Transmitted (lower) illuminator: LED light, intensity adjustable; Focus adjustment: Coaxial coarse and fine knobs on both sides; All metal mechanical components; Power supply: AC/DC adapter, 7.5V/7.5W (UL approved); - Input: 100-240V. Digital camera: - true color 2592x1944 pixels (5M pixels) - 0.5X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame speed: 5fps at 2592x1944, 18fps at 1280x960, 60fps at 640x480 - Software compatible with Windows XP/Vista/7/8/10, Mac OS and Linux operating system - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included.
- Total magnification: 40X-100X-250X-400X-1000X-2500X; Eyepieces: wide field WF10X and WF25X; Objectives: achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil); Viewing head: 45 degrees inclined 360 degrees swiveling trinocular
- Sliding adjustable interpupillary distance: 2-3/16inch ~ 2-15/16inch(55~75mm); Ocular diopter adjustable on both eye tubes; Nosepiece: revolving quadruple; Stage: mechanical double layer size: 4-1/2inchx 4-15/16inch (115mm x 125mm); Stage x-y stroke (travel range): 2-13/16inch x 1-3/16inch (70mm x 30mm)
- Condenser and diaphragm: NA1.25 Abbe condenser with iris diaphragm; Transmitted (lower) illuminator: LED light, intensity adjustable; Focus adjustment: Coaxial coarse and fine knobs on both sides; All metal mechanical components; Power supply: AC/DC adapter, 7.5V/7.5W (UL approved); - Input: 100-240V
- Digital camera: - true color 2592x1944 pixels (5M pixels) - 0.5X reduction lens to get larger field of view - 0.01 mm calibration slide: 1mm/100 division - Frame speed: 5fps at 2592x1944, 18fps at 1280x960, 60fps at 640x480 - Software compatible with Windows XP/Vista/7/8/10, Mac OS and Linux operating system - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
| UPC | 670541482278 |
|---|---|
| Brand | OMAX |
| Color | Black, Silver, White |
| Model Name | M837ZFLR-C50U3 |
| Unit Count | 1.0 Count |
| Manufacturer | OMAX |
| Model Number | M83EZ-C50U |
| Power Source | Corded Electric |
| BuiltIn Media | science-lab-compound-microscopes |
| Light Source Type | LED |
| Compatible Devices | Personal Computer, Laptop, Tablet |
| Enclosure Material | Metal |
| Real Angle Of View | 45 Degrees |
| Warranty Description | 5 Year Manufacturer |
| Magnification Maximum | 2500.00 |
| Manufacturer Part Number | M83EZ-C50U |
| Item Dimensions L x W x H | 4"L x 2"W x 15"H |
| Objective Lens Description | Achromatic |
