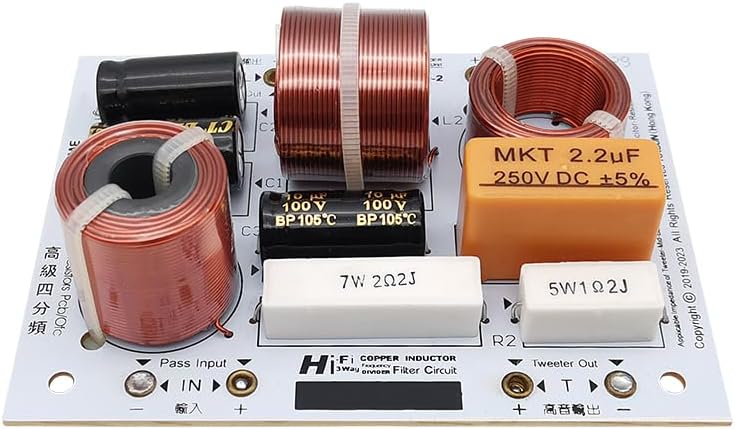

Generic 2X DRPSODAC 3 Way 4 Unit 200W Hi-Fi Audio Speaker Frequency Divider 3rd Order Crossover Filters
Product details
| Management number | 212183448 | Release Date | 2026/04/06 | List Price | $20.00 | Model Number | 212183448 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

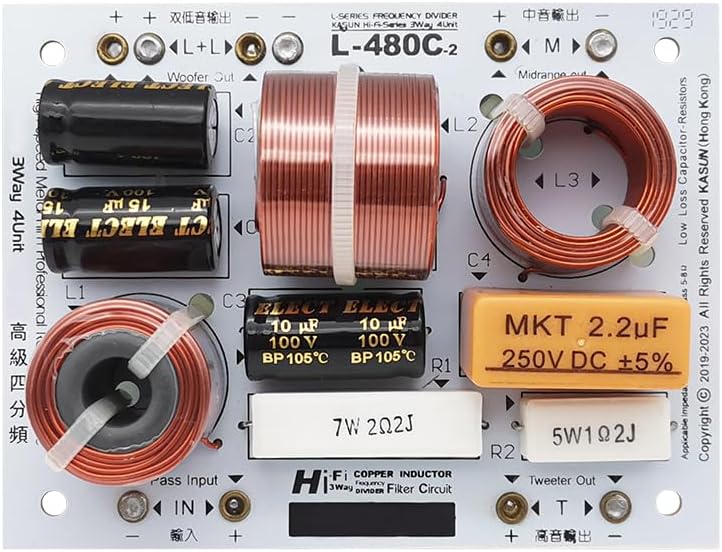

Model: L-480C Series: Senior HIFI, 3 Way 4 Unit Catalogory: Hi-Fi Freguency Divider/Crossover Frame Size(Curcuit Board Size): 112mm x 85mm / 4.41" x 3.35" Weight: 0.22kg/pcs (0.49lbs/pcs) Intersect Frequencies: 800Hz 5000Hz Tweeter Filter Properity: 12db/oct Mid-Range Filter Properity: 6db/oct Woofer Filter Properity: 12db/oct Bass Filter Properity: - Applicable Speaker Impedance: 5~8Ω(Mid-Range & Tweeter); 6~8Ω(Woofer) Max Power: 200W Circuit Characteristic: 3 Way 4 Unit Material of Inductance Coil: 0xygen-Free Copper(Purty 99.999%) Technology of Coil Winding: 3D AirCore-Inductor-Winding-Tech Package Included: Crossover x 2
- Circuit Characteristic: 3 Way 4 Unit
- Intersect Frequencies: 800Hz 5000Hz
- Tweeter Filter Properity: 12db/oct
- Mid-Range Filter Properity: 6db/oct
- Woofer Filter Properity: 12db/oct
- Bass Filter Properity: -
- Applicable Speaker Impedance: 5~8Ω(Mid-Range & Tweeter); 6~8Ω(Woofer)
- Max Power: 200W
- Frame Size(Curcuit Board Size): 112mm x 85mm / 4.41" x 3.35"
- Weight: 0.22kg/pcs (0.49lbs/pcs)
| Manufacturer | KASUN |
|---|
