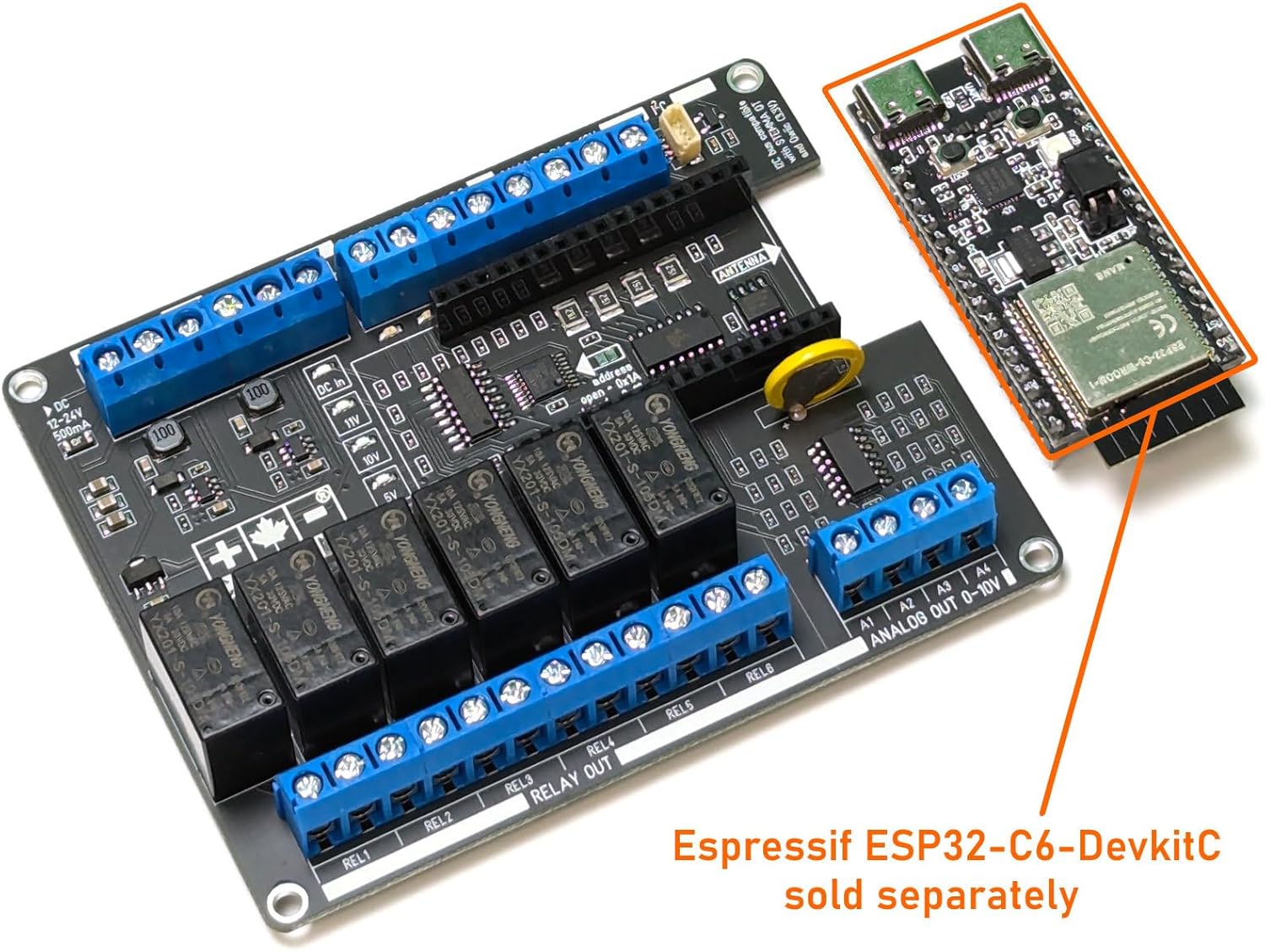

CANADUINO® ESP32 PLC-100 for Espressif ESP32-C6-DevKitC, Compatible with Arduino - Made in Canada (USMCA Complaint = no tariffs for US customers)

CANADUINO ESP32 PLC-100 V1 is a ready assembled and tested new version of our 100x80mm small Programmable Logic Controller module. It adds Wi-Fi 6, Bluetooth 5, ZigBee, more memory and a lot more processing power to the familiar design. The CANADUINO ESP32 PLC-100 V1 is a fully fitted, tiny Programmable Logic Controller for the Espressif ESP32-C6-DevKitC module (sold separately) and comes with a footprint of just 100 x 80mm. It offers a very affordable opportunity to add programmable controls to different kinds of applications and supports the most common wireless communication protocols. ESP32 PLC-100 can be programmed using Arduino IDE, Open-PLC, different ladder programming tools, or code-free applications like Visuino from Mitov. ESP32 PLC-100 is extremely budget-friendly and provides a multitude of functions and power compared to much more expensive PLCs from oterh brands. This version of our PLC-100 module has a Qwiic-compatible I2C connector (3.3V logic level) on board which allows for easy expansion with sensors, displays, or any other I2C compatible devices. A high-precision RTC chip DS3231 supports you with scheduled and timer controlled applications. Basic features: - Power supply 12*-24V DC, 0.5A - 4 analog 0-10V inputs (adjustable res.) - 4 analog 0-10V outputs (2.5mV res.) - 4 digital inputs 3.3-24V - 6 digital 250V/5A relay outputs - I2C bus (3.3V) with Qwiic connector for sensors, displays etc. - Supply voltages for auxiliary devices: + 3.3V (100mA, through I2C bus) + 5V (100mA) on terminal block + 10V (100mA for 0-10V devices, on terminal block) - DS3231 real-time-clock with backup battery - PCB dimensions: 100 x 80mm The module is assembled and only requires an Espressif ESP32-C6-DevKitC module (sold separately, ASIN B0DGY39M3F) to be ready for your program development. *At 12V supply voltage, the maximum analog output voltage is limited to about 9.6V, which is still within the allowed tolerance for 0-10V systems. To achieve full 10V analog output voltage, the supply voltage must be at least 12.2V DC.

• MADE IN CANADA (CUSMA compliant = no tariffs for US customers)
