4 Pole contactor 120v Coil 100 Amp Normally Closed IEC 500V Switch 110/120VAC Coil Lighting Load 100A, Motor Load 60A, AC Contactor | Includes Aluminum DIN Rail and Phillips Screws
Product details
| Management number | 215636377 | Release Date | 2026/04/12 | List Price | $121.60 | Model Number | 215636377 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Contactor 120v coil – 100Amp 4 Pole Normally Closed (NC) AC contactor for home and industrial uses, compatible with 35mm DIN rails, with power status indicator. Complies with IEC/EN standards for consistent and reliable installation. Includes DIN rail made of resistant aluminum (35 x 203.20 mm / 1.38 x 8 in) and two (2) 18-8 stainless steel #10 Phillips drive, truss head screws.
- HVAC Parts Applications – Ideal for lighting, motor, or switching tasks. AC-1 for resistance furnaces, incandescent lamps, or electric heaters; and AC-3 for air conditioners, compressors, or fans. Suitable for HVAC contactor. 24/120/220/277 V, with an energy saving, operates silently and efficiently without humming.
- Coil Voltage and Amp Load – Voltage: AC 110/120V, 50/60Hz. Inductive/Motor Load: 60Amp. Resistive/Incandescent Load: 90Amp. AC Load: 30Amp @ 24VDC. Power Lug Terminal Capacity AWG # 2/0. Compatible with 15 Amp, 18 Amp, 20 Amp, 30 Amp, 32 Amp, 40 Amp, 50 Amp, 60 Amp, 63 Amp, 80 Amp, 90 Amp and 100 Amp loads.

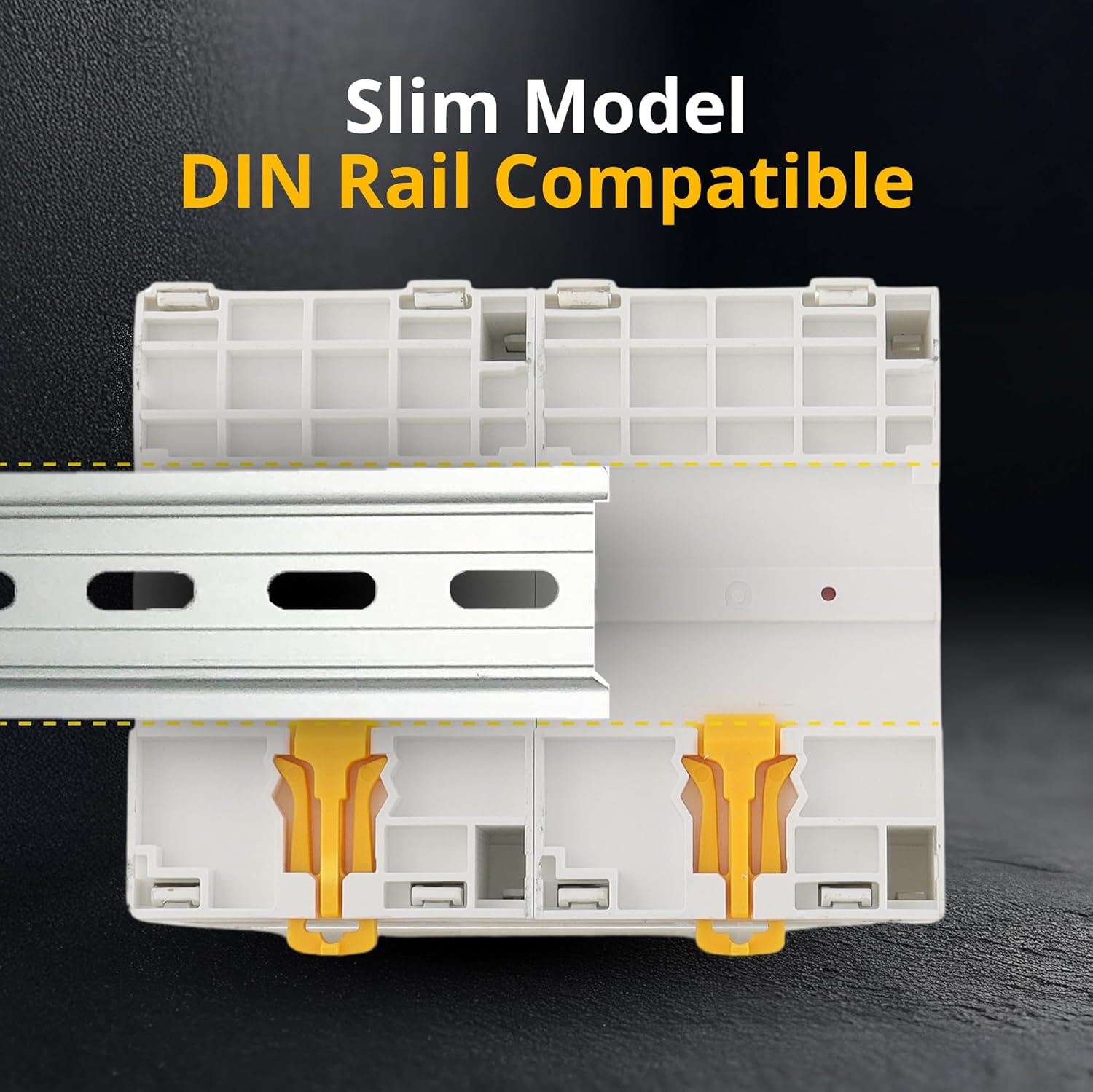

- Contactor AC Dimensions (approx.) – 110 x 81 x 68 mm / 4.3'' x 3.1'' x 2.6'' (Width x Height x Depth). Slim model for easy DIN rail mount and installation.
- About DIN Rail – Standard mounting support for any electromechanical component, including contactors, using the DIN specifications adopted by European (EN) and international (IEC) standards. Standard width 35 mm (1.38 in), length 203.20 mm (8 in), and thickness 5 mm (0.2 in).
| UPC | 850015671845 |
|---|---|
| Model | 100 Amp NC + Rail |
| Voltage | 120 Volts |
| Brand Name | SHOPCORP |
| Part Number | 1845 |
| Manufacturer | Shopcorp |
| Mounting Type | DIN Rail Mount |
| Current Rating | 100 Amps |
| Number of Poles | 4 |
| Included Components | Contactor |
| Circuit Breaker Type | Standard |
