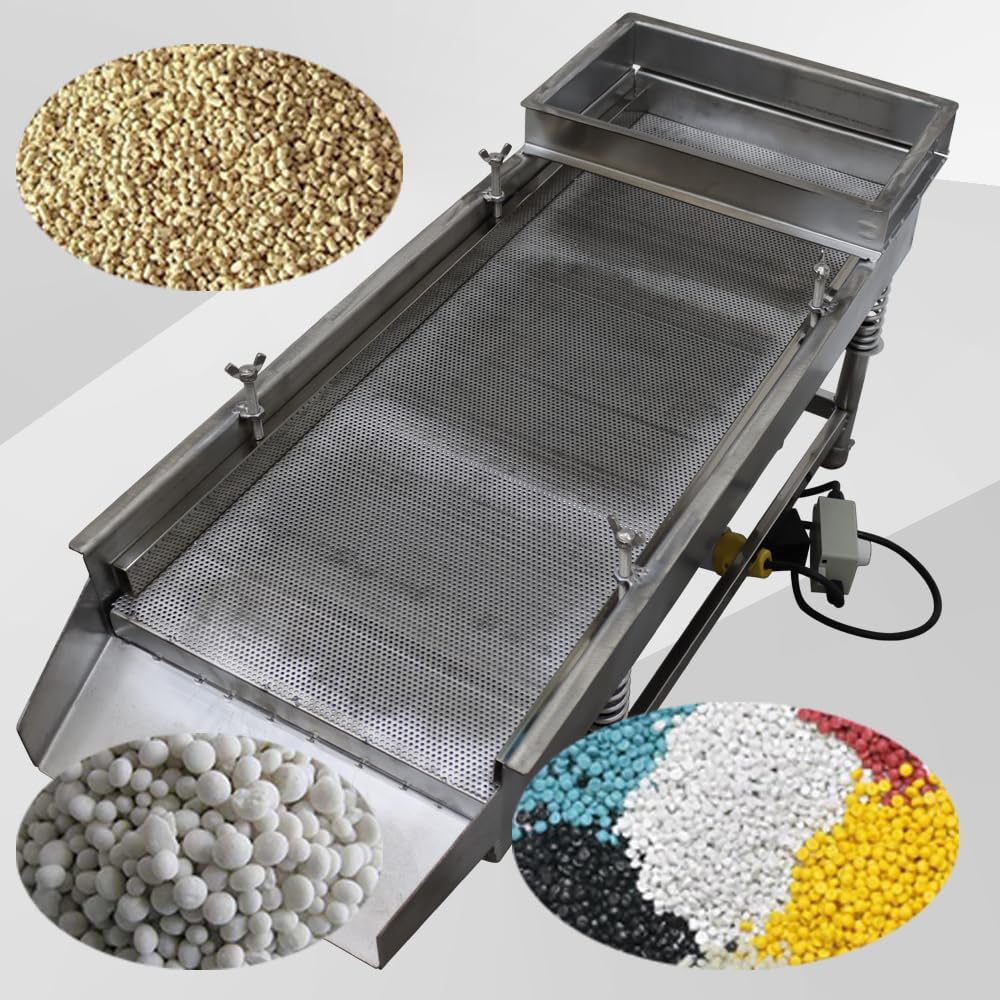

110V Full Stainless Steel Linear Vibrating Screen Vibrating Sieve Shaker Electric Vibrating Sifter with Single Layer 2mm Screen

Working Principle: The screen box relies on the vibrating motor to rotate in the opposite direction simultaneously so that the whole screen machine supported on the damper vibrates in a straight line. After the material falls into the screen box from the feeding end, it quickly moves, loosens and sifts through the screen to complete the screening operation. This machine is composed of sieve box, vibration motor, vibration damping system and chassis. The sieve box is composed of a sieve frame, a sieve plate, a lining plate. This sieve machine adopts high-performance, high-life vibration motor. Adjusting the vibration force of the vibration motor, the vibration amplitude of the sieve machine and can be changed. The vibration damping system consists of a rubber spring and a clamp, a support base and the like. The chassis consists of a silo and a chassis.Introduction: The new high-efficiency screening equipment has a screen moving trajectory that is approximately straight. This sieve machine has simple structure, large screening capacity, low energy consumption and easy maintenance. It is widely used in mining, coal, electric power, metallurgy, building materials, fire resistance and other industries for large block materials and medium and small granular materials. ●The linear vibrating screen has the advantages of small volume, light weight, simple structure, convenient installation, easy operation and maintenance.●The linear vibrating screen has low energy consumption and high efficiency.●The screening accuracy of linear vibrating screen is high.●Linear vibrating screen parameters reasonable, stable performance.●We also provide other sizes of screen, if you need to contact us.

• 【Quality Motor】: The 110V full stainless steel linear is equipped with a quality motor which has a faster working efficiency and a higher vibration frequency. The quality motor has a long service life, low noise, and easy maintenance.
• 【Easy to Operate】: The material falls into the feed end of the 110V full stainless steel linear, and it quickly moves, loosens and sifts through the screen to complete the screening operation.
• 【High Accuracy】: The electric vibrating sifter has an accurate linear vibrating screen and an adjustable vibrating amplitude which could be changed by adjusting the vibration force of the vibration motor. At the same time, the electric vibrating sifter has double outlet which could separate the material and increase discharge efficiency.
• 【Parameter】: Voltage: 110V; Power: 80W; Screen size: 30cm*75cm (11.8”*29.5”); Dimensions: 33.5*16.14*15.75in(85*41*40cm); Mesh shape: Round Hole; Mesh size: 2mm.
• 【Widely Application】: The vibrating sieve shaker is widely used in mining, coal, electric power, metallurgy, building materials, fire resistance and other industries for large block materials and medium and small granular materials.
